Why Choose this product?

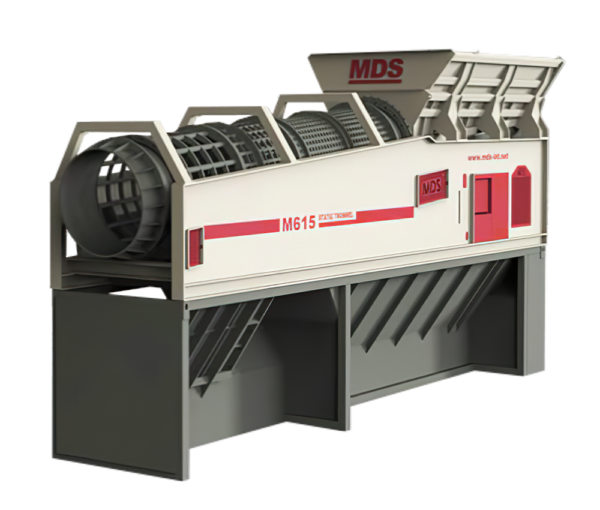

The M615 Modular Trommel is capable of screening material at the rate of approximately 500 tons per hour with a max rock size of 750 mm (30”). It is ideal for use in cleaning dirty rock or screening blasted material. With 3 possible configurations, our modular trommel covers many applications. The M615 comes with 4 splits as standard.

Specification

Engine CAT 4.4 75 kW | Output 320 to 450 tph

Weight 77,161 lbs

Feeder Hydraulic Push Feeder

Transport Dimensions Length 12130mm | Width 2496mm | Height 2990mm

Working Dimensions Length 12120mm | Width 3160mm | Height 3700mm + 2500mm (base)
